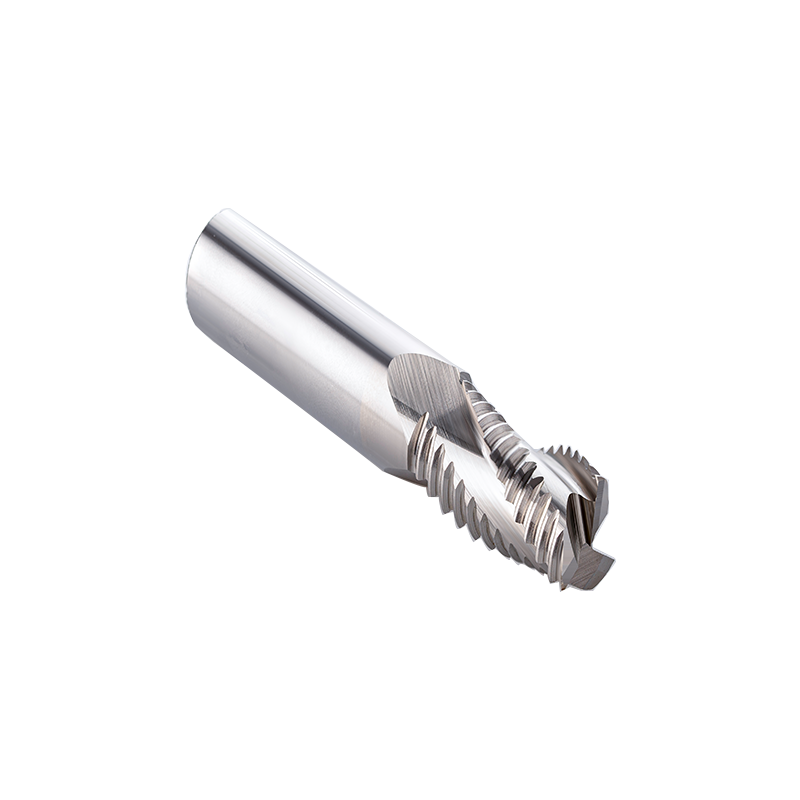

4 flute carbide spiral wave edge milling cutter

4 flute spiral milling cutter is suitable for milling rough machining, high-feed cutting, and has the characteristics of fast machining efficiency and higher cutting rate. The machining efficiency is 3-5 times that of ordinary tools. Contact sales01@ysgjtool.com to get more information.


  • Payment:

    30% deposit,70% balance
  • Product Origin:

    CN
  • Min order:

    100
  • Shipping Port:

    Xiamen
  • Lead Time:

    25-30days after the order is comfirmed


  • Product Details

4 flute carbide spiral wave edge milling cutter

The superior tungsten steel base material is used, and the anti-seismic design of the cutting edge controls chattering during processing and improves the quality of surface processing. The corrugated multi-tooth design is aimed at high rough milling processing speed, one milling to the end. Excellent shank chamfer design, simpler operation and faster clamping.



Feature:

Name 4 flute carbide spiral wave edge milling cutter
Material
Solid carbide
Color
Customized
MOQ
100pcs
Grade
Class I
Brand
Delivery time
15-20days after received deposit
Used

Copper material/steel /Wood/Plastic products/Rubber products


Application & Products Display:

Applicable models: CNC machining machine tools, high-speed machines such as engraving machines.

Applicable materials: Die steel, alloy steel, tool steel, cast iron and other metal materials for rough machining.

4 flute spiral milling cutter



Specification:

Diameter: 4/5/6/8/10/12/14mm

Length: 50/75/100mm

Weight: 0.1/0.3/0.5/0.8kg

Teeth: 4z


Why Choose us:

1. Inspect all the materials when arrived, ensure they will match customers' requirements
2. Inspect the semi-finished goods
3. Online quality control
4. Final products quality control
5. Final inspection while packing up all the goods. If there is no other problem at this stage, our QC will issue the inspection report and release for shipping
6. We strictly follow standards.
